FPTB-01 |
|
The Fabricators best friend |
|

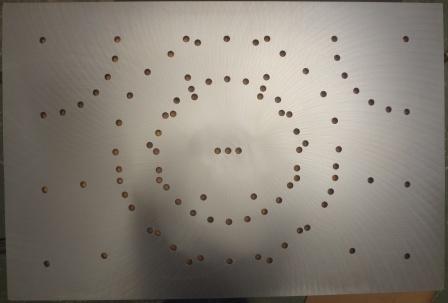

The table, which can be purchased separately is made of 1/2" plate and is 24" x 36". The geometric pattern is drilled and reamed with 1/2" diameter holes with an accuracy of .0002. The hole locations are within +/- .003 of each other, and are square to the plate edges. The plate edges are also square. The angular rays are accurate to +/- 1 min. The Table weighs approximately 125 pounds.
If you have a platen or suitable table, the Table top can be purchased separately, and includes a pin set(4 pins).
For a printable diagram of the hole pattern click here. |
|
Table |
